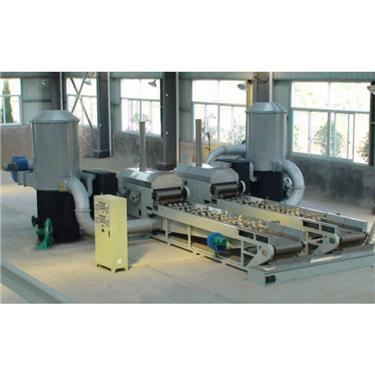

Black Tea Processing Fixing Machine
This machine unit adopts a number of core patented technology owned by the company, integrating steam heating stove, high- temperature steam fixation machine, high-temperature hot air dehydrator into one unit. Heat steam generator can produce steam at 120-180 ° C and hot air at 130-160 °C , ensuring the completion of continuous fresh leaf fixation and dehydration.

Description

4524545

  Introduction


This machine unit adopts a number of core patented technology owned by the company, integrating steam heating stove, high- temperature steam fixation machine, high-temperature hot air dehydrator into one unit. Heat steam generator can produce steam at 120-180 ° C and hot air at 130-160 °C , ensuring the completion of continuous  fresh leaf fixation and dehydration.



After fixing, water content of the  processed products is about 58%, in accordance with the requirements of the  latter rolling and carding procedure, with features of high quality and  efficiency, leaf completeness, primary color keeping, energy saving and  environmental protection, easy control, etc. Its effect of removing the bitter  taste of summer and autumn tea is particularly noticeable. It is not only  suitable for the famous tea fixing and dehydration, but also suitable for the  processing of leafy agricultural and sideline products.

     Specifications

Model &Feature

6CZQS-100


6CZQS-300

Motor power kw

Fixation chamber,0.37,dehydration,0.37

Fixation chamber,0.55,dehydration,0.55

kw Electric heat source power kw

110

/

outline dimension(length x widthx height)

5700x560x1350

7700x940x1600

External dimension of steam stove (length x width x height)mm

1800x1700x2590

1800x1800x300

Mesh belt width mm

450

650


Production per hour

≥30

≥100

Energy consumption kg coal kg tea

≤0.35

≤0.35

heating source

Coal electric

Coal electric

Matched steam stove

QRL-50

QRL-150

Total weight kg

(main machine)650(stove)

(main machine)1350(stove)

Remark

Electric heated type needs to be
customized

/




    EASY OPERATION AND MANTENANCE   ONE STOP FACTORY SERVICES



   About product  installation, training and after-sales service

    Most  products can be installed and trained through online video and text mode. If  special products need to be installed on site, we will arrange technicians to  install and debug on site.

     Our Advantages

Our  factory is Anxi Yongxing Tea Machinery Co., Ltd.. It's a tea processing  machinery enterprise integrated with design, manufacture and sale. The factory  has more than 30 years of experience in producing tea equipment.
Reasonable  prices and reliable quality. In tea processing industry, we have won the  Innovation Achievements Gold Award of Employees from Both Sides of the Taiwan  Straits, and Several National Patent Certificates.


We  always feel that all success of our company is directly related to the quality  of the products we offer. They meet the highest quality requirements as  stipulated in ISO9001, ISO14000:14001 SGS guidelines and our stringent quality  control system.


    Our Services

1, We are professional on machine producing.
2, If have any questions during machine  operation and delivery ,our sales manager and technical personnel will give you  the best advice
3, If you want to know the machine operation  please contact with us and we will send you video and detailed information.
4, If there is any questions, please do not  hesitate to contact us in time and tell us what happened ,our technical personnel  will give you the solution .
5, We will choose the most  suitable machine with our professional knowledge.



     Why us ?

1.Quality  guarantee
2.One-stop  service without any outsourcing
3.Best  Materials selection
4.On  time delivery
5.Professional  export for years
