New Arrival 40 to 70 Bagsmin Triangle Nylon Tea Bag Packing Machine
suitable for Triangle Tea Bag, available with small granules like tea leaf, broken tea, herbal tea, health care tea, coffee powder, etc..

Description

   Overview




    Application:

It is suitable for Triangle Tea Bag, available with small granules like tea leaf, broken tea, herbal tea, health care tea, coffee powder, etc..



    Feature:

1. Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

2. Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

3. All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

4. The packing material of triangle bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.

5. The machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.



     Standard Technical Data

Technical data

Type:

Tea Bag Packing Machine Series

Product model:

C20

Product name:

Automatic Pyramid Tea Bag Packing Machine

Packing Material:

Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA

Filling range:

1~10g/bag, accuracy:±0.2g/bag

Packing roll width:

140mm, 160mm, 180mm

Sealing length:

50, 60, 70, 80mm

Sealing method:

Sealing and cutting by ultrasonic

Quantity of sealing device:

2 sets

Packing speed:

40-60 bags/min

Motor Power:

220V, 50HZ, 1.2KW

Air supply:

0.6Mpa (Can be equipped with air compressor)

Weight:

400KG

Dimension:

1200*900*1800mm(L*W*H)

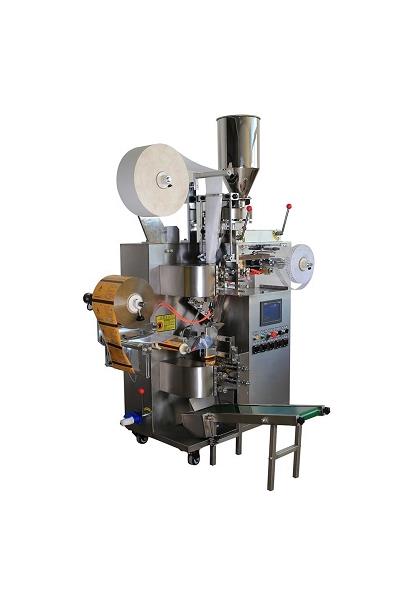

     Product Picture



   About product  installation, training and after-sales service

    Most  products can be installed and trained through online video and text mode. If  special products need to be installed on site, we will arrange technicians to  install and debug on site.

     Our Advantages

Our  factory is Anxi Yongxing Tea Machinery Co., Ltd.. It's a tea processing  machinery enterprise integrated with design, manufacture and sale. The factory  has more than 26 years of experience in producing tea equipment.
Reasonable  prices and reliable quality. In tea processing industry, we have won the  Innovation Achievements Gold Award of Employees from Both Sides of the Taiwan  Straits, and Several National Patent Certificates.


We  always feel that all success of our company is directly related to the quality  of the products we offer. They meet the highest quality requirements as  stipulated in ISO9001, ISO14000:14001 SGS guidelines and our stringent quality  control system.


    Our Services

1, We are professional on machine producing.
2, If have any questions during machine  operation and delivery ,our sales manager and technical personnel will give you  the best advice
3, If you want to know the machine operation  please contact with us and we will send you video and detailed information.
4, If there is any questions, please do not  hesitate to contact us in time and tell us what happened ,our technical personnel  will give you the solution .
5, We will choose the most  suitable machine with our professional knowledge.



     Why us ?

1.Quality  guarantee
2.One-stop  service without any outsourcing
3.Best  Materials selection
4.On  time delivery
5.Professional  export for years
