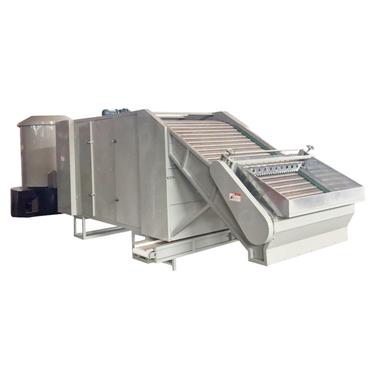

Chain Plate Tea Leaf Drying Machine 6CHB-6
This series of products is a general machinery for tea processing operations, suitable for green tea, black tea, oolong tea and other famous tea processing, exquisite drying operations. This product is used in continuous drying of famous high grade teas.

Description

  Application & scope of use

This series of  products is a general machinery for tea processing operations, suitable for  green tea, black tea, oolong tea and other famous tea processing, exquisite  drying operations. This product is  used in continuous drying of famous high grade teas. It is also suitable for  continuous drying of flaky,striped and granular Chinese herbal medicine,grain,aquatic products,fodder and other  farm by-products. The machine applies to drying process of Wu Yi Rock tea as  well.



     Structure

The machine is composed of a drying chamber,  a variable speed transmission device and a feeding device, and it is used by a  composite sleeve of a heating and auxiliary unit in an Air supply unit. Drying  room wall plate using mezzanine, good insulation performance, before and after  there are ready maintenance, observation of the door. Air supply device mainly  has the fan, the air supply pipe fittings and contains the regulating valve to  adjust the bellows and so on, the device depends on the matching heating  sub-machine, the difference between the positive pressure type and the negative  pressure type.



     Product Parameters:

Model6CHB-6
Motor power kw0.75
Outline dimension of chamber4853*1524*1650
Outline dimension of hot-blast stove
(diameter * height) mm
1208*1960
Water evaporation capacity kg(m.h)≥4.5
Effective tea-spreading area ㎡6
Drying-plate typeGalvanized,chain plate type
Number of drying-plate layers4
Heating sourcecoal.   electric (customized)
Matched metal hot air stoveRFL-50  coal-fired
Total weight kg1150(main   machine)
736(stove)



    working principle

According  to the principle of heat transfer and temperature transfer, the heated dry and  hot air is sent into the flood box and penetrating into the upper part of the  conveyor, and the wet material spread on the baking plate for hot and humid  exchange, so that the water is fully vaporized and evaporated, also the wet materials dry and dehydrated according to the requirements.




    EASY OPERATION AND MANTENANCE   ONE STOP FACTORY SERVICES





   About product  installation, training and after-sales service

    Most  products can be installed and trained through online video and text mode. If  special products need to be installed on site, we will arrange technicians to  install and debug on site.
