Black Tea Withering Processing Machine 5 Meters Length
  • tea withering
  • black tea
  • hot air
  • remove water

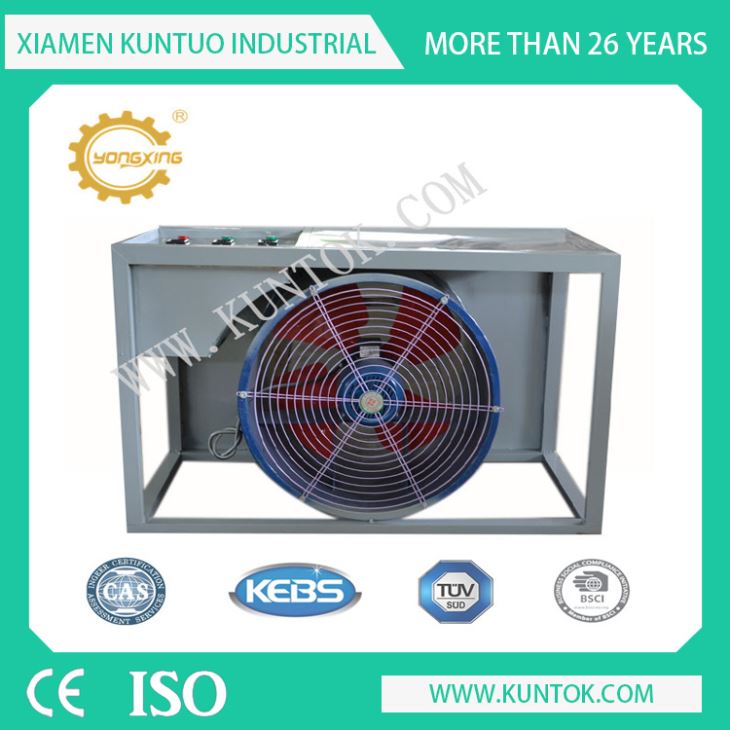

The tea withering machine consists of the frame, heat supply system and fans set and it is characterized that in the heat supply system a hot air duct is axially set in the cavity of the drum, the wall of the hot air duct is provided with air outlet holes, and the wall of the cavity of the said drum is provided with inclined stagger-distributed screw conveyance pieces and several axial distributed

Description



The tea withering machine consists of the frame, heat supply system and fans set and it is characterized that in the heat supply system a hot air duct is axially set in the cavity of the drum, the wall of the hot air duct is provided with air outlet holes, and the wall of the cavity of the said drum is provided with inclined stagger-distributed screw conveyance pieces and several axial distributed tea-turning plates.

Intelligent microcomputer control system


The temperature of the blast is adjustable from normal temperature to 100℃ , which may fast remove moisture from the surface of fixed leaves, and prevents the withering and green tea kneading from weather impact. The primary processed tea has good and stable quality, and compared with traditional method, it saves great amount of machine, labors,materials and energy consumption.

    Parameters

ModelOutside   dimensionsWork output(tedding   calculated on basis of fresh leavesIntegral powerWork voltageMaterial
LengthWidthHeight
YX-6CWD-5W5000mm  (As per client's requirement)105077020~25kg/m13kw380Vstainless   steel mesh


    Roles

The collected green leaves are spread in a given thickness, and through air-drying they are under the withered state. During the withering process, the green leaves are subjected to a series of change: the moisture diminishes, the leaf becomes soft from brittle-hard to facilitate rolling and striping, the activity of the enzyme-containing substances increases, which promotes the decomposition and transformation of the green leaf ingredients (starch, protein and insoluble protopectin) to form effective substances advantageous to quality of finished tea (such as glucose, amino acid, and soluble protopectin), and somewhat oxidizes polyphenol-like substances.



Normal and effective withering will remove grass aroma from green leaves and generate delicate fragrance and fruit or flower flavor, and the finished tea is full of pure elegance but is not bitter. The withering requires proper temperature, RH and air circulation. The first process in making Chinese white tea, black tea and Oolong tea is withering at different degree. The withering degree of the white tea is the highest, and the water content in the green leaf shall be lowered to below 40% , that of the black tea is secondary and the water content in the green leaf shall be lowered to about 60%, and that of the oolong tea is the lowest, and the water content in the green leaf shall be lowered to 68%-70%.
