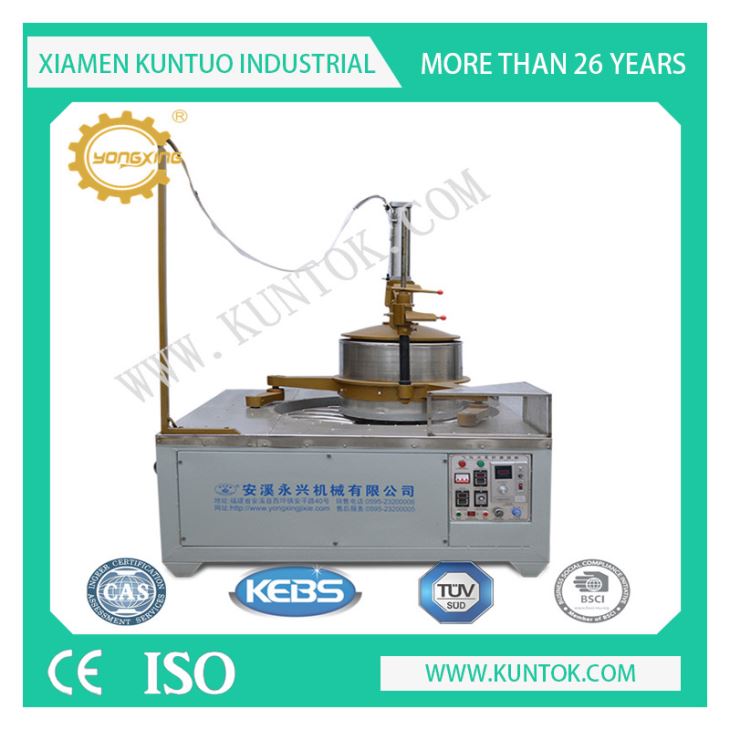

Pneumatic Automatic Tea Rolling Machine
Big tea factory process tea leaves, automatically rolling tea leaves, process tea leaves better.

Description

  Function:

automatically  rolling, kneading, grinding tea leaves.



    Product Informations

Air pressure- type tea roller , automatic force pressure of tea, highly reduce the wearing and tearing of tea leaf.


 Realize tea leaf more solid and strong,  automatic control rolling time. adopt stainless steel material of tea leaf contacting parts.  40~200kg withered leaf /time. one hour could process 180~200kg leaf.



     Product Parameters

Model

outside    dimensions
 (L X W x h)

Inner diameter of
 the kneading drum

Motor

Productivity
 (kg/ cycle)

Pressuring device

YX-6CRT-45PT

1280 x 1220 x 1350mm

450mm

1.1kw/380v

15-25kg

Floating pressuring by
 single column screw

YX-6CRT-55QT

1560 x 1430 x    1660mm

550mm

2.2kw/380v

40-50kg

Intelligent gas
 pressurization

YX-6CRT-65QT

1740 x 1610 x    1580 mm

650mm

3kw/380v

90-100kg

Intelligent gas
 pressurization

YX-6CRT-75QT

2050 x 1900 x    2400mm

750mm

5kw/380v

100-200kg

Intelligent gas
 pressurization



     Application

Big tea factory process tea leaves, automatically  rolling tea leaves, process tea leaves better.



    About Packing and Delivery

We will pack the goods as the exported  requirement and make the fast delivery. To confirm that you will get the good  goods. We usually suggest our customers do the shipment by sea because It is economical,  the air transport is short time but expensive. The forwarder can be provided  from you then we will help to contact them, and you also can use our  cooperation forwarder.



     Transport, installation and commissioning

1.When transporting, it is  required to place a smooth, fixed and no relative sliding to prevent the impact from damaging the machine.
2. Installation  & commissioning
tea rolling machine installation is simple, in the selected position, will  be installed in the tea rolling machine bracket suspended (pre-dug The pouring  hole), three feet to the positive three pouring holes, put on the screw ,then correct  rubbing plate level, and then poured cement mortar, when the cement mortar is strong,  remove the support, and then gradually tighten the foot nut, can also be  used M12 expansion bolts fixed, and at any time on the edge of the  rubbing plate with a horizontal meter to measure the positive level, until the  nut tightening, the installation is complete.



     Preparation before use:

a) Remove the debris and tools left over  from the rubbing plate, rolling bucket and machine;
b) Be sure to check that the supply voltage  used is the same as the motor voltage of this product, and connect the ground  line and electric shock protector to ensure the safety of the person and machine;
c) Carefully check whether the fastener is  reliable, especially if the fastening screws on the curvature arm are loose and  shedding.
d) Check the amount of mechanical oil in  the gearbox, if not enough, please add a number of mechanical oil to the box.
e) Outside the warning area, the empty car  commissioning for 10 minutes, to observe whether the direction of operation is  correct, gear rotation is normal, if there is blocking, collision phenomenon  should be immediately shut down to check.




    EASY OPERATION AND MANTENANCE   ONE STOP FACTORY SERVICES


   About product  installation, training and after-sales service

    Most  products can be installed and trained through online video and text mode. If  special products need to be installed on site, we will arrange technicians to  install and debug on site.

     Our Advantages

Our  factory is Anxi Yongxing Tea Machinery Co., Ltd.. It's a tea processing  machinery enterprise integrated with design, manufacture and sale. The factory  has more than 30 years of experience in producing tea equipment.
Reasonable  prices and reliable quality. In tea processing industry, we have won the  Innovation Achievements Gold Award of Employees from Both Sides of the Taiwan  Straits, and Several National Patent Certificates.


We  always feel that all success of our company is directly related to the quality  of the products we offer. They meet the highest quality requirements as  stipulated in ISO9001, ISO14000:14001 SGS guidelines and our stringent quality  control system.


    Our Services

1, We are professional on machine producing.
2, If have any questions during machine  operation and delivery ,our sales manager and technical personnel will give you  the best advice
3, If you want to know the machine operation  please contact with us and we will send you video and detailed information.
4, If there is any questions, please do not  hesitate to contact us in time and tell us what happened ,our technical personnel  will give you the solution .
5, We will choose the most  suitable machine with our professional knowledge.



     Why us ?

1.Quality  guarantee
2.One-stop  service without any outsourcing
3.Best  Materials selection
4.On  time delivery
5.Professional  export for years
