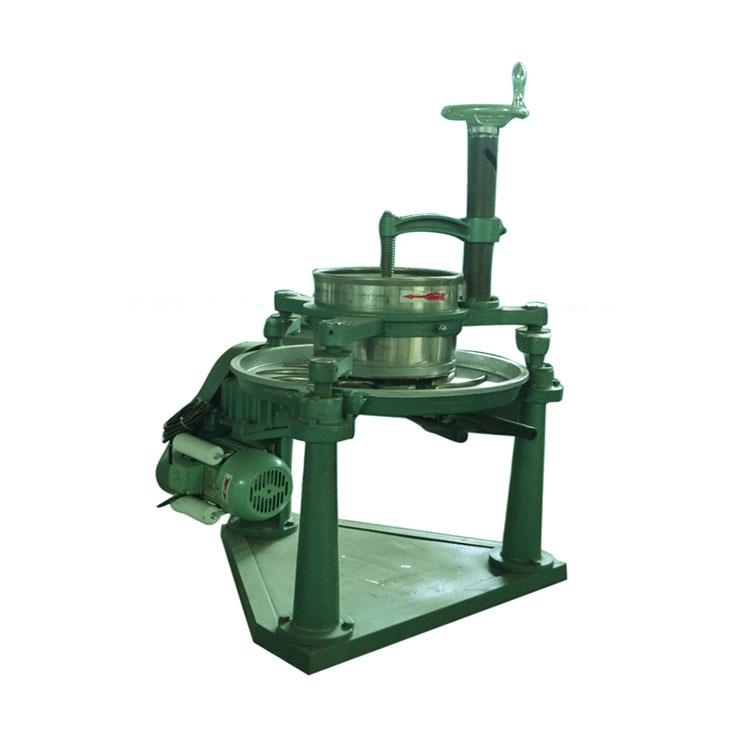

Tea Leaf Roller Machine
properly destruct the leaf texture, squeeze out the tea juice, improve the taste, benefit the stripe coiling, drying and shaping, make the tea easy to brew and properly resist the brewing, and thus improve the drinking value.

Description

  Function:

properly destruct the leaf texture, squeeze  out the tea juice, improve the taste, benefit the  stripe coiling, drying and shaping, make the tea easy to  brew and properly resist the brewing, and thus improve the drinking value.



    Features:

The surface of the disk is in one run pressed from stainless  steel plate to make the panel and the joists become an  integral, which decreases the breaking ratio of tea and increases its striping  ratio.

The kneading machine uses worm gears, and the kneading drum is  driven through mechanical-connected parts. The centrifugal movement in the  fixing disk built with joists makes the tea in the kneading drum suffer from  the kneading action generated between the upper gland and the joists of the  lower fixing disk. The kneading degree of the tea can be adjusted by regulating  the pressure of the gland.


     Product Parameters

Model

Outside dimensions
 (L * W * H)

Inner diameter of the
 kneading drum

Motor

Productivity
 (kg/ cycle)

 Pressuring device

YX-6CRT-25B

615*610*670(mm)

250mm

0.37kw/220V

 5-10kg

 Floating pressuring by
 single column screw

YX-6CRT-35B

1100*1000*1020(mm)

350mm

0.55kw/220V

 15-20kg

 Floating pressuring by
 single column screw

YX-6CRT-45B

1200*1100*1200(mm)

450mm

1.1kw/380V

 15-25 kg

 Floating pressuring by
 single column screw

YX-6CRT-55B

1410*1365*1420(mm)

550mm

2.2kw/380V

 40-50 kg

 Pressuring by gantry
 (dual-beam pressuring)

YX-6CRT-65B

1750*1400*1580(mm)

650mm

3kw/380V

 90-100 kg

 Pressuring by gantry
 (dual-beam pressuring)


    EASY OPERATION AND MANTENANCE   ONE STOP FACTORY SERVICES




   About product  installation, training and after-sales service

    Most  products can be installed and trained through online video and text mode. If  special products need to be installed on site, we will arrange technicians to  install and debug on site.

     Our Advantages

Our  factory is Anxi Yongxing Tea Machinery Co., Ltd.. It's a tea processing  machinery enterprise integrated with design, manufacture and sale. The factory  has more than 26 years of experience in producing tea equipment.
Reasonable  prices and reliable quality. In tea processing industry, we have won the  Innovation Achievements Gold Award of Employees from Both Sides of the Taiwan  Straits, and Several National Patent Certificates.


We  always feel that all success of our company is directly related to the quality  of the products we offer. They meet the highest quality requirements as  stipulated in ISO9001, ISO14000:14001 SGS guidelines and our stringent quality  control system.


    Our Services

1, We are professional on machine producing.
2, If have any questions during machine  operation and delivery ,our sales manager and technical personnel will give you  the best advice
3, If you want to know the machine operation  please contact with us and we will send you video and detailed information.
4, If there is any questions, please do not  hesitate to contact us in time and tell us what happened ,our technical personnel  will give you the solution .
5, We will choose the most  suitable machine with our professional knowledge.



     Why us ?

1.Quality  guarantee
2.One-stop  service without any outsourcing
3.Best  Materials selection
4.On  time delivery
5.Professional  export for years
